Three-phase electric energy meter C70QPL100S4CAD

DIN railmulti-functionbi-directional

Description

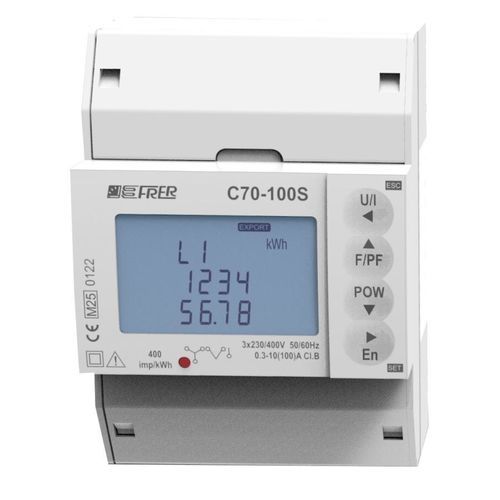

Three-phase energy meter for 3- and 4-wire networks, MID certified. Direct connection up to 100 A. Bidirectional active energy measurement, class B (EN50470-3). Multimeasure capabilities with two S0 pulse outputs and M-Bus communication. Extended operating temperature up to 70°C. Housed in a 4-DIN-module enclosure.

Features available on the page

• System: MID energy meter for three-phase 3- and 4-wire networks
• Current: Direct connection up to 100 A
• Rated voltage: 400 V
• Bidirectional measurement
• Active energy: class B (EN50470-3)
• Multimeasurement functions
• Pulse outputs: 2 S0 outputs
• Communication: M-Bus
• Operating temperature range: up to 70°C
• Enclosure: 4 DIN modules

Documentation / Download

• Datasheet
• User manual
• Communication protocols

Technical drawings

• Technical drawing DWG
• Technical drawing PDF

Characteristics / technical specifications

• Model: C70QPL100S4CAD
• Type: MID three-phase meter for 3- and 4-wire networks
• Rated voltage: 400 V
• Rated current: 100 A (direct connection)
• Measurement class: Active energy class B (EN50470-3)
• Functions: Multivalue measurement, bidirectional
• Outputs: 2 S0 pulse outputs
• Communication interface: M-Bus
• Operating temperature range: up to 70°C
• Mounting: 4 DIN modules enclosure
• Approval: MID
