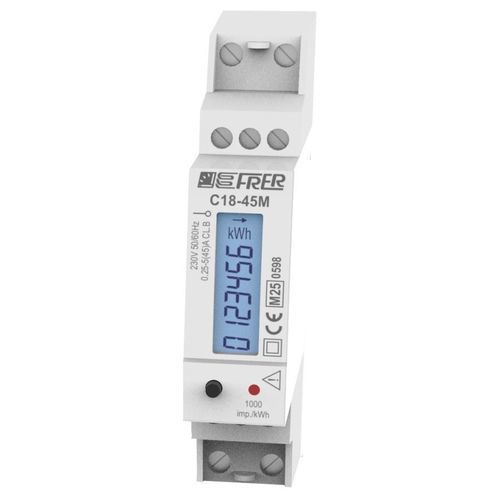

Single-phase electric energy meter C18QSL045MD3AIDIN railRS-485pulse output
Add to favorites
Compare this product
Characteristics
- Type
- single-phase
- Assembly
- DIN rail
- Other characteristics
- RS-485, pulse output, MID certified, Modbus RTU, multi-function, bi-directional
- Voltage
Max.: 230 V
Min.: 230 V
- Primary current
Max.: 45 A
Min.: 45 A
Description
Description
Single-phase MID energy meter for single-phase networks. Direct connection up to 45 A. Bidirectional measurement, active energy class B (EN50470-3) and multi-measurement functions. Two S0 pulse outputs and RS485 Modbus RTU communication. Extended operating temperature up to 70 °C. 1 DIN module enclosure.
Available documents
Characteristics / technical specifications
Single-phase MID energy meter for single-phase networks. Direct connection up to 45 A. Bidirectional measurement, active energy class B (EN50470-3) and multi-measurement functions. Two S0 pulse outputs and RS485 Modbus RTU communication. Extended operating temperature up to 70 °C. 1 DIN module enclosure.
Available documents
- Datasheet
- User manual
- Communication protocols
- Technical drawing PDF
Characteristics / technical specifications
- Type: Single-phase MID energy meter
- Rated voltage: 230 V
- Current: 45 A (direct connection)
- Bidirectional
- Active energy: class B (EN50470-3)
- Functionality: multi-measurement
- Outputs: 2 S0 pulse outputs
- Communication: RS485 Modbus RTU
- Temperature range: up to 70 °C
- Enclosure: 1 DIN module
