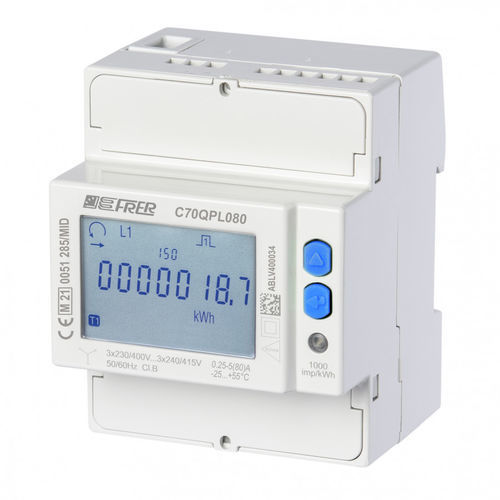

Three-phase electric energy meter C70QPL seriesDIN railMID certifiedwith communications function
Add to favorites
Compare this product
Characteristics
- Type
- three-phase
- Assembly
- DIN rail
- Other characteristics
- MID certified, with communications function, multi tariff, pulse output
- Voltage
Min.: 400 V
Max.: 400 V
- Primary current
Min.: 80 A
Max.: 80 A
Description
Product overview
MID energy meter model C70QPL08004CAD for direct measurement in unbalanced 3-phase (3-4 wire) systems. Rated for 400 V and direct current up to 80 A. Modular design for 4 DIN modules with an optical port for connection to dedicated communication modules.
Key features
Technical specifications
Documentation
Datasheet and user manual are available for this product.
Applications
MID energy meter model C70QPL08004CAD for direct measurement in unbalanced 3-phase (3-4 wire) systems. Rated for 400 V and direct current up to 80 A. Modular design for 4 DIN modules with an optical port for connection to dedicated communication modules.
Key features
- 3-phase 3-4 wire unbalanced systems, 400 V, 80 A direct
- Double tariff (two-tariff) measurement
- 2 pulse outputs for energy counting
- Optical port for connection to dedicated communication modules
- Compact modular mounting: 4 DIN modules
Technical specifications
- Model: C70QPL08004CAD
- Type: MID energy meter
- Phases: 3-phase (3-4 wires)
- Rated voltage: 400 V
- Direct current rating: 80 A
- Tariff: Double tariff
- Outputs: 2 pulse outputs
- Communication: Optical port for dedicated communication modules
- Mechanical size: 4 DIN modules
Documentation
Datasheet and user manual are available for this product.
Applications
- Commercial and industrial energy monitoring
- Submetering and load measurement
- Billing and tariff-based energy management
Catalogs
No catalogs are available for this product.
