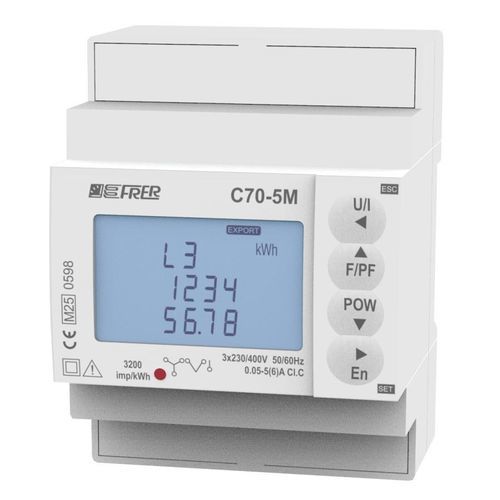

Three-phase electric energy meter C70QPL005M4CAD

DIN railpulse outputRS-485

Description
Three-phase MID electricity meter for 3- and 4-wire networks. CT insertion for external current transformers. Bidirectional measurement, active energy class C (EN50470-3), multi-parameter measurement. Two S0 pulse outputs and RS485 communication with Modbus RTU. Extended operating temperature up to 70 °C. Enclosure for 4 DIN modules.

Additional features

• Three-phase for 3- and 4-wire networks
• Nominal voltage: 400 V
• CT insertion for external current transformers (CT)
• Bidirectional energy measurement
• Active energy class C (EN50470-3) / MID
• Multi-parameter measurement (multiple electrical quantities)
• 2 x S0 pulse outputs
• RS485 communication, Modbus RTU protocol
• Extended operating temperature up to 70 °C
• Enclosure: 4 DIN modules

Documentation available

• Datasheet
• User manual
• Communication protocols
• Technical drawing (PDF and DWG)

Characteristics / Technical specifications

• Model: C70QPL005M4CAD
• Application: three-phase 3- and 4-wire networks
• Standards / Marking: MID, active energy class C (EN50470-3)
• CT connection: insertion on external current transformers (CT)
• Pulse outputs: 2 × S0
• Communication: RS485 - Modbus RTU
• Operating temperature: up to 70 °C
• Mounting: 4 DIN-module enclosure
