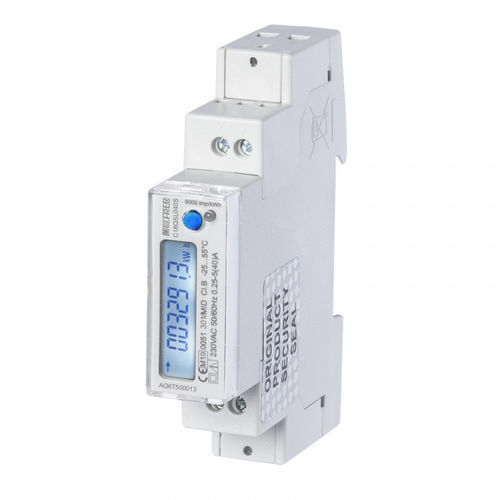

Single-phase electric energy meter C18QSL040SD3AI

panel-mountM-Buswith built-in communication

Product
MID energy meter C18QSL040SD3AI - single-phase direct connection energy meter, direct up to 40 A, integrated M-Bus, 1 DIN module

Overview
Compact MID-certified energy meter for single-phase installations. Designed for direct connection up to 40 A, it provides a pulse output for integration with energy monitoring systems and an integrated M-Bus interface for remote reading and management. Suitable for panel mounting in industrial and commercial electrical distributions.

Main features

• Single-phase operation
• Rated voltage: 230 V
• Direct connection up to 40 A
• 1 pulse output for energy counting
• Integrated M-Bus communication
• Compact 1 DIN module housing for panel mounting

Available documentation and resources

• Data sheet
• User manual
• Communication protocols
• Software (protected access)
• DWG technical drawing (archive)
• PDF technical drawing

Technical specifications

• Product code: C18QSL040SD3AI
• Type: MID energy meter
• Phase: Single-phase
• Rated voltage: 230 V
• Maximum direct current: 40 A
• Pulse outputs: 1
• Communication: Built-in M-Bus
• Mounting: 1 DIN module
• Categories: ENERGY METERS; MID ENERGY METERS
