Three-phase electric energy meter C70QTL

panel-mountDIN railmulti tariff

Product

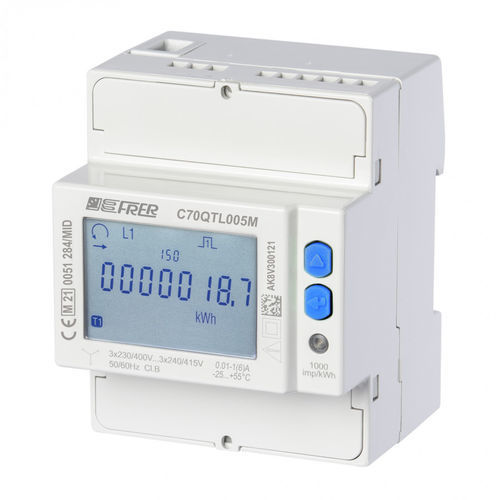

MID-compliant energy meter C70QTL005M4CAD for three-phase, 4‑wire unbalanced systems. DIN-rail modular format (4 DIN modules) with CT current input and integrated RS485 Modbus RTU communication, suitable for industrial energy monitoring and billing.

Main features

• 3-phase, 4-wire unbalanced system – nominal voltage 400 V
• CT input, measurement range 1–5 A
• Double tariff (two tariff registers)
• 1 pulse output for external counters or monitoring
• Built-in RS485 interface with Modbus RTU protocol
• Mechanical format: 4 DIN modules for DIN-rail panel mounting

Available downloads (documents)

• Data sheet (PDF)
• User manual (PDF)
• Communication protocols – Modbus RTU (PDF)
• Software (protected access)

Technical drawings

• DWG technical drawing (archive)
• PDF technical drawing

Technical specifications

• Product family: MID energy meters
• Model: C70QTL005M4CAD
• Series: C70QTL
• Configuration: 3-phase, 4-wire (unbalanced)
• Nominal voltage: 400 V
• Current input: CT input, 1–5 A
• Tariffs: Double tariff
• Outputs: 1 pulse output
• Communication: RS485, Modbus RTU
• Format: 4 DIN modules (panel-mounted modular size)
• Documents available: data sheet, user manual, Modbus RTU protocol, technical drawings, software
