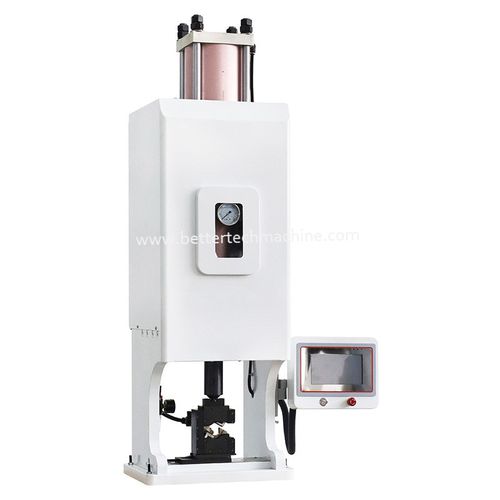

Cable lug crimping machine JWD-TF120cablesemi-automatichydraulic
Add to favorites
Compare this product
Characteristics
- Product handled
- for cable lugs, cable
- Operational mode
- semi-automatic
- Drive type
- hydraulic
- Other characteristics
- hexagonal
- Crimping force
20 tf
- Voltage
220 V
- Weight
100 kg
(220.46 lb)
Description
Semi automatic cable lug crimping machine is widely applied for many big size metal ferrule and wire terminals.
• Besides hexagon crimping applicators, it can use 4 point mold crimping applicator, 2000 style single grain mold crimping applicator, octagonal V crimping applicator, Upper and lower mold crimping applicator.
• Cable lug crimping machine JWD-TF120T has 20.0 ton crimping force. more crimping force 30.0 ton, JWD-TF130T will meet your needs.
• Micro computer controlled, ideal for single use and automatic assembly line integration.
• Intelligent system is easy to operate, more accurate control, convenient debugging.
• Optional : 4 point mold, 2000 style single grain mold, octagonal V crimping die, Upper and lower die
• Voltage : AC 220V 50/60HZ
• Output : 20~40 time/min
• Oil pressure booster stroke 50mm
• Gas pressure : 0.3~0.7Mpa
• Dimension : L720mm x W420mm x H1230mm
