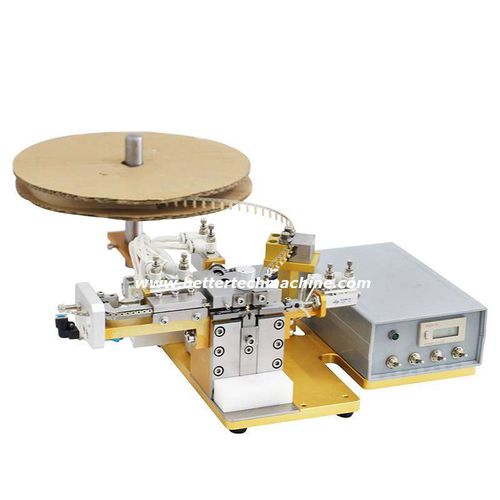

Connector crimping machine JWD-TH31

automaticpneumatic

I-PEX connector is widely used in automotive infotainment systems, smartphones, notebook, pad, and wireless devices. JWD-TH31 is a professional pneumatic terminal crimping machine for crimping mini coax connectors, I-PEX connector, MHF terminal and more. • Pneumatic terminl crimping machine is specially designed for coaxial wire pressing and riveting. It is suitable for special continuous terminals, such as I-pex connectors, MHF terminals, which can complete the three actions of cutting, forming and pressing at one go. • Japanese SMC components are used to ensure high quality crimping of the machine, which is more durable than ordinary terminal crimping machines on the market. • The modular design of the electrical part is more energy saving and more stable. • Cable outer diameter : 0.81mm, 1.13mm, 1.32mm, 1.37mm, 1.78mm • Function : crimp RF terminals/MHF terminal/I-PEX connector • Capacity : 1500-1800pcs/h • Gas pressure : 0.5-0.7Mpa (5-7bar) • Machine dimension : 350mm×260mm×200mm L×W×H
