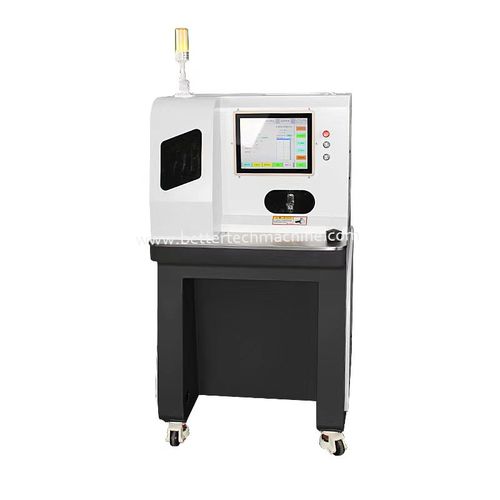

Cable terminal crimping machine JWD-TF1H

cablesemi-automaticwith manual feed

Semi automatic printing number tube insertion and tubular terminal crimping machine JWD-TF1H can complete print number tube, insert number tube, wire stripping, tubular terminal crimping in one machine. • Number tube insertion and tubular terminal crimping machine JWD-TF1H widely crimps tubular terminals to 0.5 sqmm to 4 sqmm wire. the tubular terminal length is less than 7.5mm • JWD-TF1H can complete print number tube, insert number tube, wire stripping, tubular terminal crimping in one machine • It finishes insertion and wire stripping before terminal crimping. JWD-TF1H can memory the wire stripping length, the stripping length shorter than 12mm. • The jigs, vibrating disks, wire stripping length and crimping data can change by yourself • 1 year warranty • Fast delivery • Technical team support and reliable aftersale service • Machine : Number Tube Insertion and Tubular Terminal Crimping Machine • Function : Wire stripping, Number tubing inserting, Tubular terminal crimping, • Wire diameter : Wire AWG20-AWG12 (0.5 – 4sqmm) • Control system : HMI, electronic control, pneumatic control • Crimping shape : Rectangle crimping (4 side crimping) • Change die : √ • Detection device : Check the terminal exist or not, check the protective device run or not • Stripping length : 8-16mm • Terminal specification : Terminal insulator length≤ 7.5mm, conductor length ≤12 mm • Environment Temprature : 10-25°C • Environment humidity : 30%-80% HR non-condensation • Air pressure : 0.5-0.8MPa • Machine dimension : L760mmxW730mmx H1400mm
