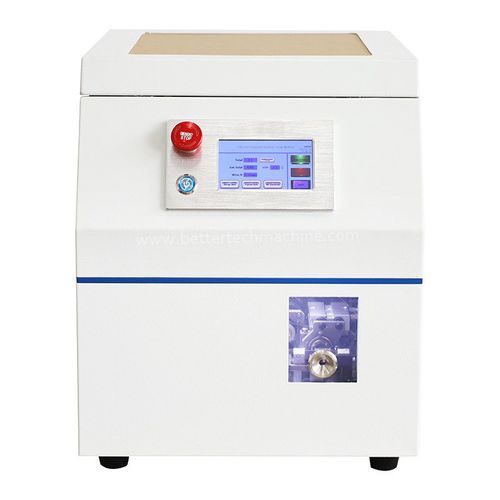

Cable terminal crimping machine JWD-3PC

for wiresautomaticcompact

Loose bulk tubular terminal / Pre-insulated terminal crimping machine can finish wire stripping and crimping at one go. Automated feeding system improve the efficiency than simple terminal crimper. • Suitable for crimping loose bulk terminals(tube terminals). • Wire stripping and crimping are completed at one go. Easy to operate. Users just put the wire in the flared shape, after setting the parameter. • The machine is fully enclosed for wire stripping and crimping procedure. The enclosed design and emergency button, protect the users away from risk factor. • JWD-3PC is equipped with a detection system to check the safety door of the machine and the presence of terminals. • The machine is fitted with an internal vibration bowl, convenient and quick to feed terminals. • Wire size: 0.5SQMM、0.75SQMM, 1SQMM、1.5SQMM、2.5SQMM、4SQMM • Insulator length within 7.5mm, Conductor length within 12mm. • Wire range : 0.5 0.75 1.0 1.5 2.5 4.0SQMM • Terminal range : Round tube pre insulated terminal:Insulator length within 7.5mm, conductor length within 12mm • Function : Stripping cable jacket, automatic feeding, twist wire, crimp terminal • Working mode : Automated/manual • Working speed : 2.2s/pcs • Stripping Length : 3~16MM • Crimping method : 4 side crimping or customization • Crimping Force : Optional • Terminal feeding system : Vibrator Bowl feeding • Air Pressure : 0.6-0.8Mpa • Working temprature : 0~35℃ • Working humidity : 30～80%HR • Machine dimension : 450 x 350 x 400MM LxWxH
