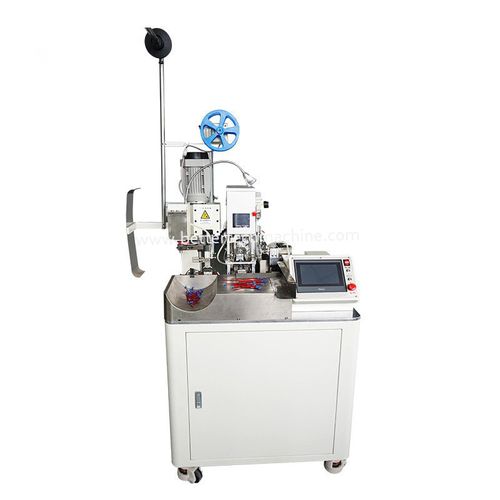

Wire stripping and crimping machine JWD-TS03

fully-automatic

Fully Automatic Wire Waterproof Seals Plugging-in & Crimping Machine • Function: cutting, stripping, and single ends terminal crimping. • This fully automatic wire waterproof seals plugging in & crimping machine has two mode: OTP transverse mode and straight mode, two modes can exchange smoothly. • Equipped with touch screen, it is easy to operate. Wire single end terminal crimping, the length of wires cutting and wire stripping are adjustable drectly by touch screen. • Max processing amount : 2600pcs/hour. • Wire dia ranges is AWG1007 18#~28# • Function : Wire cutting off. peeling jacket of two ends, Single end crimping. The single end through waterproof plug seals • Wire dia. ranges : AWG1007 18#~28# • Max processing capability : 2600pcs/hour(wire length=150mm) • Wire / Cable length : 60-3000mm(length over 800mm need equip long conveyor belt) • Control mode : 165NA/MIPS • Working pressure : 5Kgf/cm (clean & dry air ) • Detection device : detect the status of terminal, crimping effects and waterproof plug seals • Machine dimension : L800mm×W800mm×H1862mm • Optional accessories : card mold and blade/ vertical feeder / long conveyor belt • Application : Terminal end hitting, crimping, and tinning
