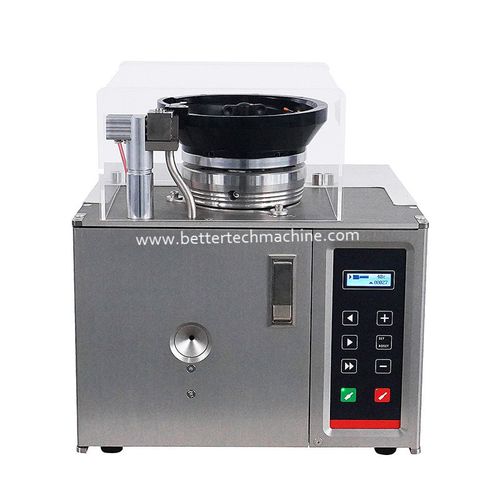

Wire end ferrules crimping machine JWD-TF01

for cable terminalsautomaticcompact

Pre-insulated terminal / Loose tubular terminal crimping machine can finish wire stripping and crimping at one time. It is suitable for crimping cables of 0.5~4 sqmm. • Suitable for crimping tubular loose terminals. • Wire stripping and crimping are completed at one time. • Wear-free, maintenance-free • Easily change from just stripping to stripping and crimping ferrules in one operation • Easy bowl change and easier adjustable bowl speed settings. Adopting vibration plate feeding method, convenient and quick to replace terminals.The flared shape makes wire threading convenient • Conveniently assessible waste bin. • Processing wire size: or 0.5-2.5 sqmm or 0.5~4sqmm. • Function : strip sheath, crimp terminal connectors • Max processing capability : 1.5s/pcs • Custom made : √ • Crimping method : horizontal crimping • Srimping length : 8~12mm • Wire range : BVR hard wire: 0.5-4sqmm. • soft wire needs to be twisted: 0.5-2.5 sqmm. • Terminal feeding : Vibrator Bowl feeding • Air Pressure : 0.3-0.8Mpa • Machine dimension : L420mmx W400 mm x H390mm
