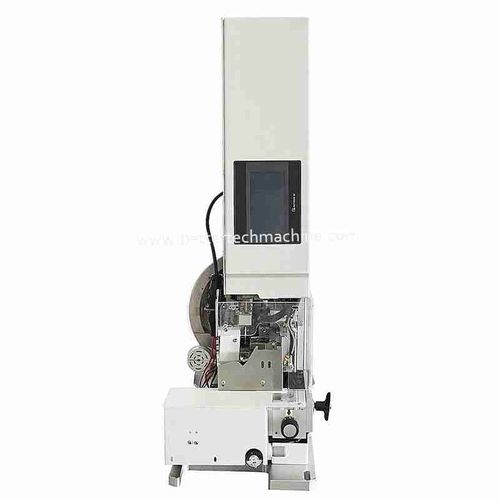

Semi-automatic insertion machine JWD-FS300

This semi-automatic wire sealing station is specially designed for wires/cables inserting waterproof rubber seals holes . It is widely used in the automotive industry. • Operation interface: using visualization, parameters can be set quickly, and the operation is simple; • Material loading: The transparent baffle is used to facilitate the observation of the material usage and timely material replenishment. The material barrel is made of stainless steel. • In terms of operation: to complete each piercing action, you can use foot pedal or timing operation; • Material replacement: different waterproof bolt tracks and modules can be replaced, simple operation and quick replacement; • Safety: With safety protection cover and other safety prevention and control. • Output : 50 times/min (not counting manual speed) • Seal size : Max: 9x10mm (outer diameter x length) • Seal inner diameter : 0.6-3.0mm • Seal outer diameter : 1-3.5mm • Insertion length max. : 10mm • The length of the inner sheath of the multi-core wire : ＞ 38mm • Accuracy : ±0. 3mm • Power : 150W • Power supply : 200V 50Hz
