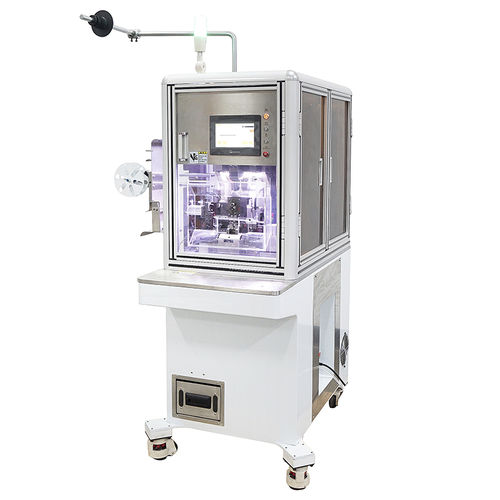

Cable stripping and crimping machine JWD-FS3000C

automatic

JWD-FS3000C is consisted of wire stripping system and rubber seals inserting system and tweminal crimping system. This machine can strip the wire outer insulation, insert in rubber seals and crimp terminals automatically. Operator only need to put the end of cable/wire into the working area and then press down foot switch, then JWD-FS3000C will strip and seal-crimp automatically. • This machine adopts servo rotation, guide screw positioning, and realizes the three processes of wearing rubber seals, stripping and crimping at the same time. • The stripping length is adjustable. • The depth of the rubber seals is adjusted according to the glue position data between the stripping port and the rubber seals. • The crimping depth of the end can be adjusted according to the position of the top line. • The machine is driven by a high-efficiency servo motor, featuring high-speed stamping, and stable pressure. • The stripping slider is driven by a screw rod to ensure accurate stripping length. • The insulation stripping mechanism is driven by a motor and a screw rod to ensure accurate stripping length. • The rubber seals feeding structure is simple and easy to replace, which can meet a wide variety of requirements. • Output : about 1,200 pieces/hour • Applicable wire diameter : 0.2mm²-2.5mm² • Rubber seal size : φ≤10mm×10mm • Stripping length : 0-10mm • Crimping stroke : 30mm • Crimping mode : servo motor driven • Accuracy : ±0.02mm • Air pressuer : 0.5-0.7Mpa • Dimensions : L1100mm×W920mm×H1600mm
