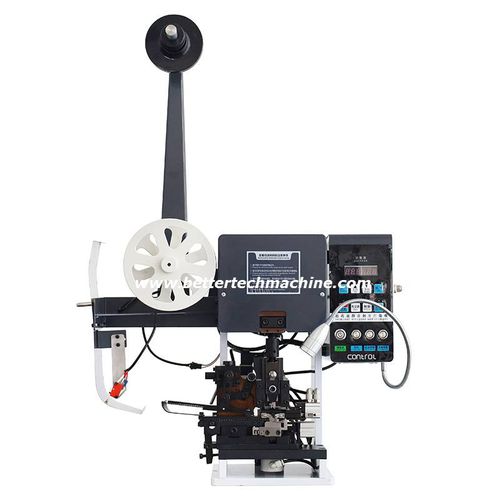

Cable stripping and crimping machine JWD-SCJ series

semi-automatic

Semi-automatic wire stripping and crimping machine JWD-SCJ33, designed for high-precision stripping and crimping of side-feed or rear-feed terminals for 32AWG- 18AWG electric wires. • Adopts advanced frequency conversion technology to precisely control the variable speed motor. • Equipped with high-precision control module and transmission mechanism. • The stripping and terminal crimping can be completed simultaneously. • Low noise, low power consumption, and fast speed. • It is good at processing very thin wires and multi-core shielded wires • Wire types : AV、AVS、AVSS、CAVUS、KV、KIV、UL、IV cable, Teflon wire, silicone wire, glassfiber wire • Output4 : 4000pcs/h • Applicable wire size : AWG32#-AWG18# • Applicable terminal type : Open continuous type terminal, horizontal type terminal • Crimping force : 1.5T/ 2T/ 3T • Stroke : 30mm • Number of strokes : 4000 times per hour • Stripping length : 1 – 10mm • Tangent error : 0.05mm-0.1mm • Position error : 0.05mm-0.1mm • Air source : 0.3 – 0.4Mpa • Dimension(L×W×H) : 530×400×830mm • Optional : Crimping force
