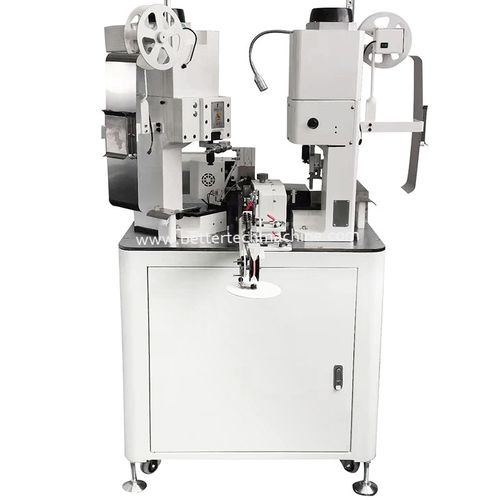

Wire stripping and crimping machine JWD-T-S01

automatictwin-head

• This two head fully automatic terminal crimping machine that can process wire cutting, two ends stripping, one end crimping, two ends crimping, and one end twisting • As a terminal crimping manufacturer, we can add the protective acrylic on JWD-T-S01 to keep workers safety. • Advanced software and visual touch screen makes the machine easy to operate • Using two motors to send wires, avoiding the problem of different lengths of wires and indentation of wires • Low noise and uniform force, can be equipped with horizontal and vertical applicators • Features : Cable/wire cutting, two ends stripping, one end crimping, two ends crimping, one end twisting • Output : 3800 pcs/h (L≤100mm) • Cutting speed : 4000 pcs/h (L≤100mm) • Cutting length : 40-9900mm (27mm can be customized) • Cutting tolerance : 0.002×L m • Wire stripping length : 0.5-10mm • Suitable wire sizes : AWG18#-28# • Die types : OTP horizontal mode straight mode • Detection device : Crimping detection, lack of wire detection, pressure detection, terminal detection • Air pressure : 0.4-0.6MPa • Dimension : W800mm*L700mm*H1550mm
