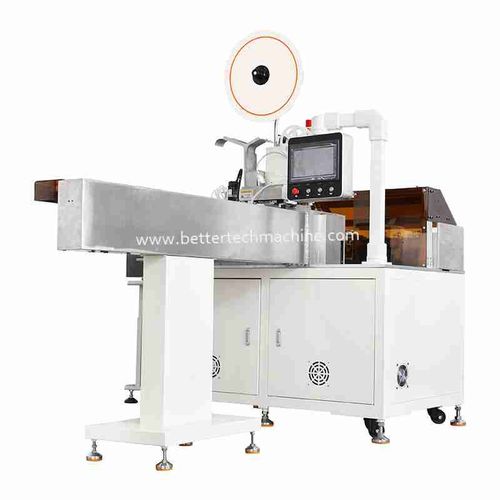

Connector stripping and crimping machine JWD-JK800

fully-automaticPLC-controlled

Fully automated wire crimping tinning & housing insertion machine can finish processing procedure of wire cutting stripping at both sidesof the wire, crimping wire terminal, conductor tining, inserting connector housing at one end. • Fully automatic working on both sides of the wire, Cut off, Cable outer cable jacket stripping, terminal crimping, one end conductor tinning, housing insertingwire feeding, Tin feeding • Wire size: 30AWG to 20AWG • Stripping length: 1~8mm • Tinning length: 1~8mm • Cutting length: 50 to 1000mm • This wire processing machine suppot customization service • Wire colors : 1~10 types color • Detection: Air pressure reduction; whether there is wire, housing connector or terminal, current conduction, pressing error, crimping force monitor, visual CCD detective device • Optional: wire feeder, crimping force monitor, visual CCD detective device. • Function : Working on both sides of the wire, Cut off, Cable outer jacket stripping, terminal crimping, one end conductor tinning, housing insertingwire feeding, Tin feeding, Optional: automatic flux addition, Visual CCD detective device • Wire size : 30AWG to 20AWG • Wire color : 10 color (Optional 2~10 color) • Detective divice : Air pressure reduction; whether there is wire, housing connector or terminal, current conduction, pressing error, crimping force monitor, visual CCD detective device • Cutting tolerance : cutting length*0.1mm • Crimping mold : OTP mold • Temprature : 15℃ ~ 30℃ • humidity : 30%-80% RH can not form dew
