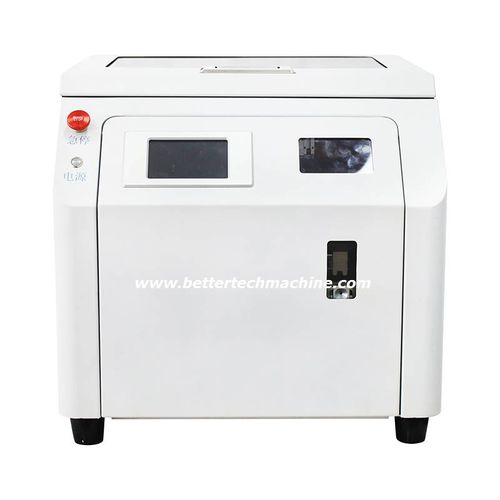

Connector stripping and crimping machine JWD-3PC

semi-automaticservo-electricwith sealing

Wire Strippig and Fork Connector Crimping Machine Model JWD-3PC Brand BETTERTECH Feature Suitable for crimping loose bulk terminals(U shape terminals), JWD-3PC can finish wire stripping, wire twisting, wire inserting and terminal crimping procedures. there are two side crimping and for side crimping two types methods. Available wire size: 0.3sq.mm~6sq.mm Available crimping length 12mm Crimping data store: 100groups Parameter Machine - Fork Connector Crimping Machine Model - JWD-3PC Wire range - 0.3 ~ 6sqmm Function - Wire stripping, twisting, connector inserting and crimping Capacity - 600pcs/h Crimping length - ≤12mm Crimping mold - four side crimping / Two side crimping Stripping length - 65mm Blade material - Imported tungsten steel Blade amount - 2pcs Driving mode - servo motor/motor/imported ball screw Detection system - Detect wire terminal exists or is absent Terminal feeding system - Vibrator Bowl feeder Store data - 100 groups Power supply - 220V 50/60Hz 10A Power - 400W Working temprature - 0~50℃ Weight - 70kg Dimension - 540mm x 570mm x 520mm
