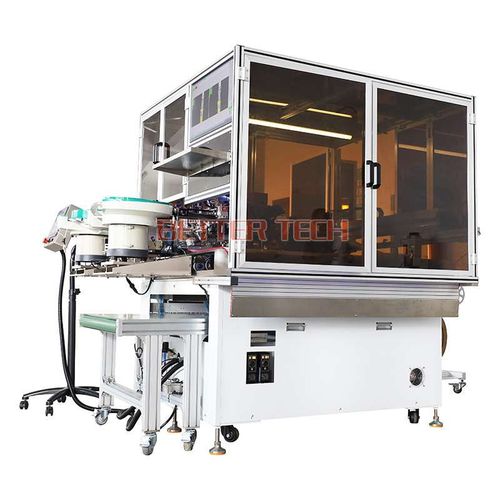

Connector assembly machine JWD-JKG5600

automatichousingmulti-function

Fully automatic cable connector housing assembly machine can finish processing procedure of wire cutting, stripping at both ends, crimping at both ends, inserting housing at one end, and inserting housing at both ends. • Fully automatic housing connector assembly machine JWD-JKG5600enable work on both sides of the wire, Cut off, Cable outer jacket stripping, terminal crimping, wire feeding and housing connector feeding in one machine, it equips wire color identification and visual CCD detective device. • Wire size: 30AWG to 22AWG (0.05mm² to 0.2mm²) • Wire colors : 1~10 types color • Detection: Air pressure reduction; optional pressure check; whether exist wire, housing connector or terminal at place, wire conduction,strippig length error, pressing error, insertation detection. • Optional: wire feeder, crimping force monitor, terminal crimping mold. • Function : Working on both sides of the wire, Cut off, Cable outer jacket stripping, terminal crimping, wire feeding, housing connector feeding, wire color identification, Visual CCD detective device • Wire size : 30AWG to 22AWG (0.05mm² to 0.2mm²) • Wire color : Optional 1~10 color • Working speed : 1.8s/pcs(length=150mm) • Detective divice : Air pressure reduction; optional pressure check; whether there is wire, housing connector or terminal, wire conduction,strippig length error, pressing error, insertation detection • Cutting length : 80 to 700mm (other length need customization) • Cutting tolerance : cutting length*0.02 • Stripping length : 1~3mm • Crimping force : 7.8KN(0.8Ton) • Gas pressure : 0.5Mpa(clean and dry gas) • Power supply : AC 220V 50/60Hz 10A
