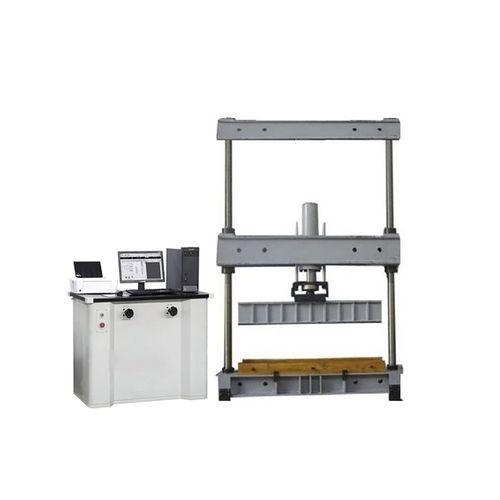

Compression testing machine CDY-1000W

computer-controlledfor building materialsfor pipes

CDY-1000W compression testing machine used for concrete and cement pipe compression strength testing, with different compression fixture can test cement, plastic sand, and red brick building materials. Widely used in metallurgy, building materials, space flight and aviation, colleges and universities,R&D institution lines. The test operation and data processing meets standard requirements. Standard It is designed for the radial compression test of drainpipe and other cement pipes which accord with GB/T 11836-99“Test method of concrete and ferroconcrete drainpipe”, GB/T 16752-2010 concrete and ferroconcrete drainpipe”. It is also suitable for the compression test of other metal and non-metal material. Features: This equipment consist of main unit, oil source, measure and control system. Computer auto control machine up, down, test and stop. Test force display mode: the computer automatic control, real-time display the current pressure maintaining time, speed, strength parameters, etc. Force measurement and control system is microcomputer automatic control system, , loading speed, force strength digital display, with automatic storage, query at any time , print and save the test process, and other functions. Also equipped with HP color printer, can print test reports. Automatic identification of crack load and record, record breaking load automatically Main technical parameters: Max test force - 1000kN Structure - Two ball screws, oil cylinder above structure Test machine class - 1 class Test force range - 2%-100% FS Test force indicate relative error - Better than ±1% Displacement resolution - 0.01 mm Displacement indicate relative error - Better than ±1%
