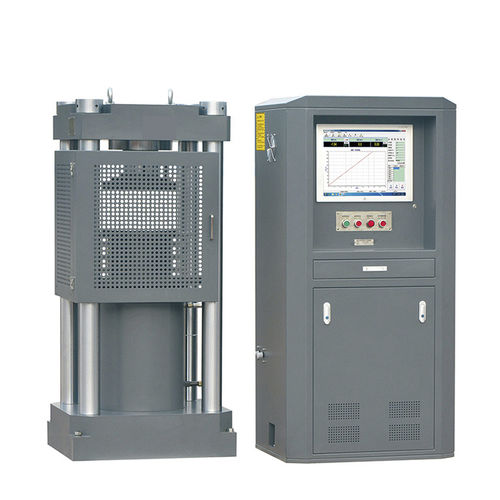

Compression test machine YES-BG seriesconcretedigital
Add to favorites
Compare this product
Characteristics
- Test type
- compression
- Test material
- concrete
- Technology
- digital
Description
Digital display compression testing machine mainly used for concrete and other material compression resist testing. Widely used in metallurgy, building materials, space flight and aviation, colleges and universities, R&D institution lines. The test operation and data processing meets standard requirements.
Main Specifications.
Max. load - 2000kN/200Ton - 1000kN/100Ton
Machine Class - 1 class
Range of test force - 4% ~100%FS
Indicating value accuracy - ±1%
Piston stroke - 200mm
Distance between platens - 360mm
Upper platen size - Φ300mm (Can be customized)
Lower platen size - Φ300mm (Can be customized)
Display - LCD Display Curves
Power supply - AC380V/50Hz/3 phase(can be customized)
Size - 640×560×1500 mm
Weight - 1500 kg
