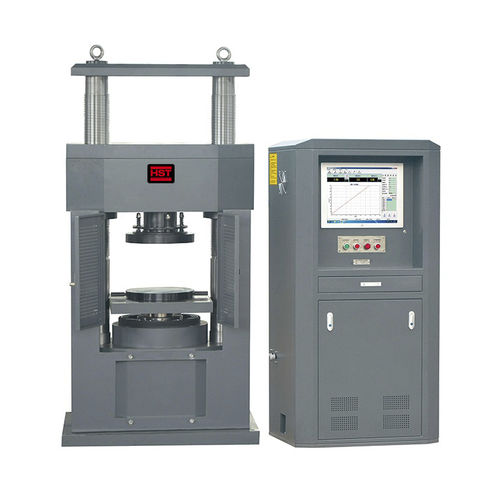

Compression testing machine YAW-2000EG

electriccomputer-controlledmaterial

YAW-EG Series compression testing machine mainly used for concrete rupture strength testing, cement, plastic sand, and red brick building materials compression resist testing. Widely used in metallurgy, building materials, space flight and aviation, colleges and universities, R&D institution lines. The test operation and data processing meets standard requirements. Features 2.1 Computer control up, down, test, stop and loading progress 2.2 Double electric screw ball adjust test space 2.3 Unibody desktop oil source control cabinet 2.4 This machine consist of the host machine, oil source and control system. 2.5 Can realize the load rate, such as load 2.6 Can auto printing Technical parameters Max. Load - 2000kN Control method - Computer auto control loading process Test class - 1 class Testing range - 1%-100%FS Load display accuracy - Better than ±1% Piston stroke - 150mm Distance between upper and lower platen - 600mm Piston displacement speed - 0-60mm/min Loading speed - 0.02%-2%FS/s Size of upper and lower platen - Φ300mm Power supply - 2.5Kw/AC380V
