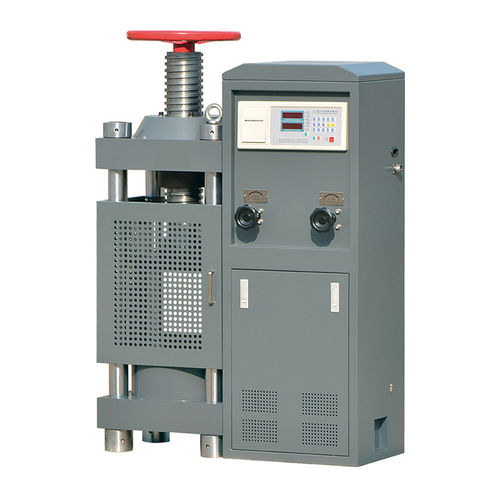

Compression test machine YES-2000manualconcretefor cement
Add to favorites
Compare this product
Characteristics
- Test type
- compression
- Operating mode
- manual
- Test material
- concrete, for cement
- Sector
- for laboratory, for research and development, for the aeronautical industry
- Technology
- digital, hydraulic
Description
Digital display Compression Testing machine mainly used for concrete and other material compression resist testing. Widely used in metallurgy, building materials, space flight and aviation, colleges and universities, R&D institution lines. The test operation and data processing meets standard requirements.
Main Specifications
Max. load - 1000KN /100Ton - 2000kN/200Ton
Machine Class - 1 class
Range of test force - 4% ~100%FS
Testing space adjust method - Manual adjust
Indicating value accuracy - ±1%
Piston stroke - 30mm
Diameter of Piston - 250mm
Distance between platens - 320mm
Upper platen size - 220*250mm (Can be customized)
Display - LCD & Computer screen display
Power supply - 0.75KW, AC380V/50Hz/3 phase(can be customized)
Size - 880*480*1400 mm
Weight - 600kg
Power - 380V/220V / 0.75KW
