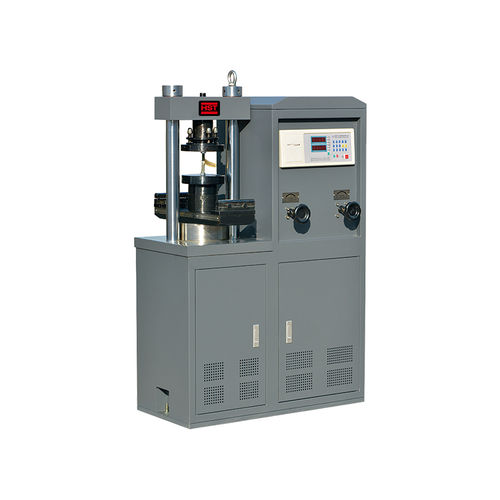

Compression testing machine YES-300computer-controlledmaterialfor building materials
Add to favorites
Compare this product
Characteristics
- Test type
- compression
- Operating mode
- computer-controlled
- Test material
- material, for building materials
- Sector
- for laboratory, for research and development, for the aeronautical industry
- Technology
- digital
Description
Digital display Compression Testing machine mainly used for brick, cement, concrete construction material and other material compression resist testing.
Widely used in metallurgy, building materials, space flight and aviation, colleges and universities, R&D institution lines. The test operation and data processing meets standard requirements.
Main Technical Parameters
Max. Load - 100kN - 200kN - 300kN
Range of test force - 4-100kN - 8-200kN - 12-300kN
Test space adjusting mode - Block adjustment test space
Control mode - Manual control loading process
Value repeatability error - ≤±1%
Loading speed - 0.3KN/S~10KN/S
Loading speed error - ±5%
Piston stroke - 60mm
Max compression space between two plates - 180
Working table size - 150mm×200mm
Dimension - 1200x550x1400mm
