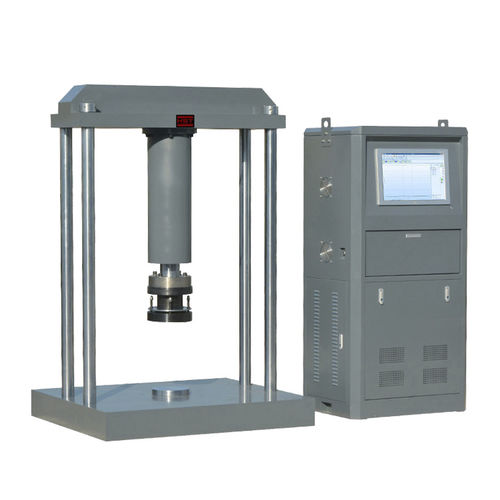

Compression testing machine HYJ-600W

computer-controlledmanhole cover

Used to determine compression strength and residual deformation of castiron manhole cover. Compositive manhole and steel fiber reinforced concrete well cover. It can do the compression test to other material if equippen with other accessories. .Standard: CJ / T3012-1993 "Cast Iron Inspection Manhole Cover" CJ / T121-2000 "Recycled Resin Composite Material Inspection Manhole Cover" JC889-2001 "Steel Fiber Reinforced Concrete Inspection Manhole Cover" GB / T 23857-2009 "Inspection Manhole Cover" Parameters: Max test force (kn) - 600 - 1000 Effective test space(mm) - 1200×1200 Table height(mm) - 200 Force accuracy - ±1% Test range - 2%-100% Deviation of deformation measure - ±1%； Max. piston moves speed - 80 mm/min Maximum compression space - 400 mm Compression plate size Φ 360 (GB Standard) or 250 (Europe standard) Deformation measuring range (mm) - 0-20 Piston stroke 350 mm Power supply - 380V/220V 1.5kw Mainframe dimensions (length × width × height) (mm) - 2400×1200×1400
