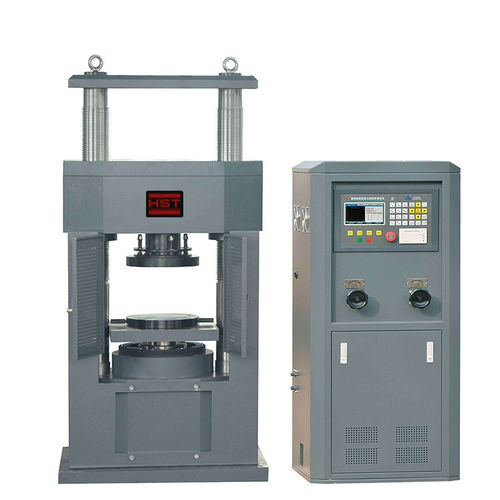

Compression testing machine YES-2000E

forcepressureelectric

The Compression Testing Machine with PC&Servo Control is designed for testing the compressive strength of building materials such as brick, cement mortar and concrete; it is electro-hydraulically powered and the pressure applied on the specimen can be displayed directly; The maximum force value can be maintained and the data measured can be saved when the power is off; The test data can be processed automatically and the test report can be printed Main Specifications • Max. load : 2000kN/200Ton : 1000kN/100Ton • Machine Class : 1 class • Range of test force : 4% ~100%FS • Host Structure : Double electric screw ball adjust test space • Indicating value accuracy : ±1% • Piston stroke : 150mm • Distance between upper and lower platen : 600mm • Upper and lower platen size : 300*300mm (Can be customized) • Display : LCD • Power supply : AC380V/50Hz/3 phase(can be customized) • Size : 900×400×1150 mm • Weight : 750kg
