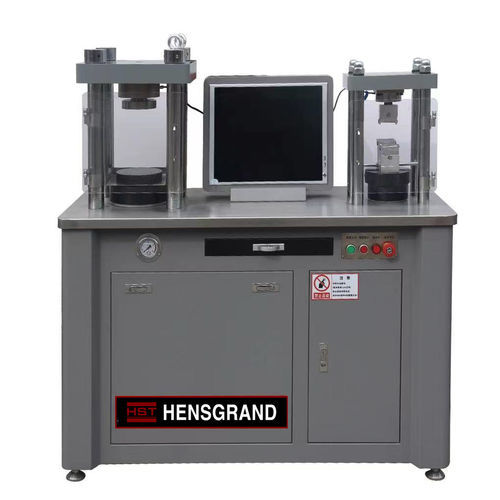

Compression test machine YAW-300 series

performancecomputer-controlledconcrete

YAW-C Computer Control Hydraulic Compression and Bend Testing Machine Application This series compression testing machine is mainly designed for compression test of building material items, such as concrete cube, concrete blocks, cement specimen, and bricks etc, also used for compression performance test of rubber pad and top forge test of metal. With new design idea and advanced technology, this series have more advantages in appearance, operation & applications. It is the ideal test equipment for quality control at industry & mineral enterprises, education in high schools, and technology researches at scientific institutes. Main Specifications Max compression test force(kN) 300kN compression /10kN Bending Test Accuracy ±1% Test measurement range 4%-100%FS Control way Computer control auto loading progress Test space adjustment method Block adjustment test space Rate of loading 2.4KN/S（compression resistance ） 50N/S (bending resistance) Oil cylinder piston diameter and stroke 50 mm Distance between compression plates 180mm Upper and lower compression plates size Φ108mm /Φ60mm Size 860mm×430mm×1100mm Power supply 380V, 50HZ, 0.75KW
