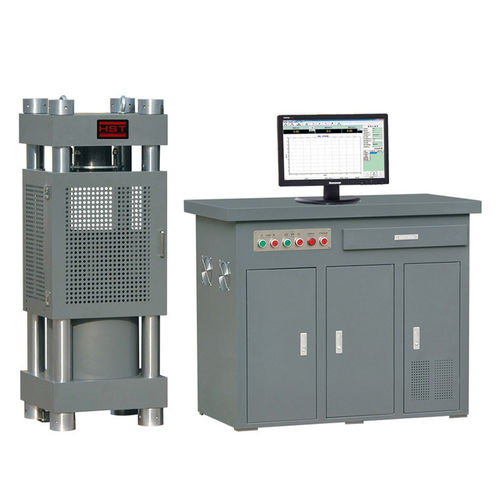

Compression testing machine YAW-2000B

computer-controlledfor plasticsfor building materials

YAW-B Series compression testing machine mainly used for concrete rupture strength testing, cement, plastic sand, and red brick building materials compression resist testing. Widely used in metallurgy, building materials, space flight and aviation, colleges and universities, R&D institution lines. The test operation and data processing meets standard requirements. Features 2.1 Computer control up, down, test, stop and loading progress 2.2 Electric screw ball adjust test space 2.3 Unibody desktop oil source control cabinet 2.4 This machine consist of the host machine, oil source and control system. 2.5 Can realize the load rate, such as load or stress rate loading 2.6 Can auto printing Technical parameters Max. Load - 2000kN Control method - Computer auto control loading process Oil source control cabinet structure - One-piece oil source control cabinet Test class - 1 class Testing range - 4%-100%FS Load display accuracy - Better than ±1% Piston stroke - 120mm Distance between upper and lower platen - 360mm Size of upper and lower platen - Φ300mm Power supply - 2.0Kw/AC380V
