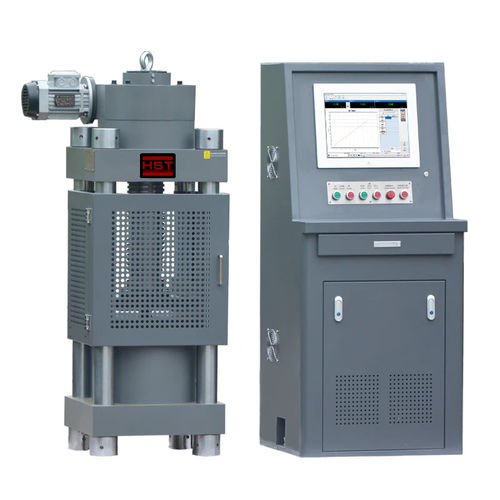

Compression test machine YAW-2000D

computer-controlledfor materialsfor building materials

YAW-D mainly used for concrete rupture strength testing, cement, plastic sand, and red brick building materials compression resist testing. Widely used in metallurgy, building materials, space flight and aviation, colleges and universities, R&D institution lines. The test operation and data processing meets standard requirements. Features Computer control up, down, test, stop and loading progress Electric screw ball adjust test space Unibody desktop oil source control cabinet This machine consist of the host machine, oil source and control system. Can realize the load rate, such as load or stress rate loading Can auto printing Technical parameters Max. Load - 2000kN - 3000kN Control method - Computer auto control loading process Test space adjustment mode - YAW-2000S Manual screw adjust YAW-2000D/YAW-3000D Electric ball screw adjust Test class - 1 class Load measuring range - 4-100% of F.S Load accuracy - ±1.0% Upper Compression Platen (mm) - 220x250 - 220x250 Lower compression platen (mm) - 220x250 - 220x250 Piston stroke(mm) - 50 - 50 Distance between upper and lower plate - 320mm - 320mm Power supply - AC380V/220V Overall dimension (mm) - 1200x450x1150 - 1200*600*1200 Weight (kg) - 650 - 1000
