Compression testing machine YAW-300G

universaltensilebending

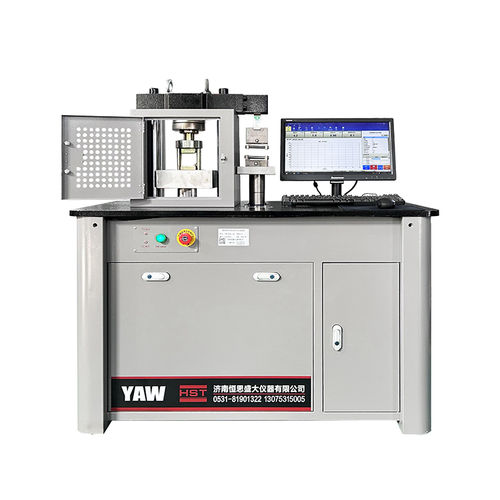

This machine adopt computer auto control, with constant test speed, constant stress, test force keeping and other control mode. The computer realize test data and test curve’display, save,manage function, can print test report. With special fixtures, can test other material compression and flexual testing. Features: 2.1This testing machine adopt AC servo system drive the AC servo motor,by precision reduction gears drives the ball screw,with high test accuracy,low noise. 2.2Without pressure oil leakage and proportional valve blocking, low noise, more reliable. 2.3Window control and dealing software, design more reasonable. 2.4 Can arbitrarily set pressure value, pressure time, auto calculate test result. 2.5Advanced auto control function, can do single or batch test. 2.6Auto stop,after sample broken. 2.7With over load protection. Main Specifications Max compression test force(kN) 300 Max bending test force(kN) 10 Test Accuracy ±1% Test measurement range 2%-100%FS Control way Computer control auto loading progress Constant loading speed 0.1KN/S～10KN/S Test space adjustment method Block adjustment test space Speed 0.01-50mm/min Max compression space 200mm Upperand lowercompression plates size Φ280 Size 570*410*1340mm Power supply 220V, 50HZ, 1.5 KW
