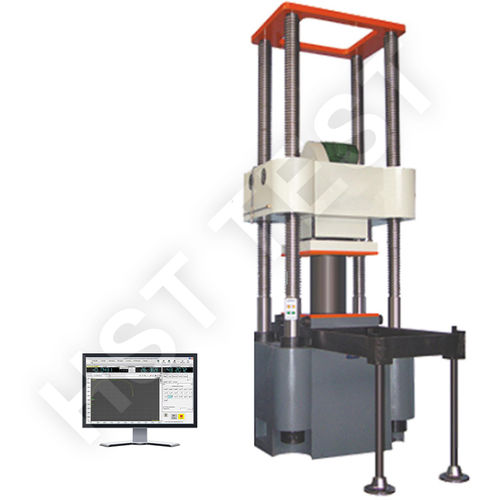

Compression testing machine YAW-5000

computer-controlledfor building materialsfor research and development

This series Compression Testing machine is mainly designed for compression test of building material items, such as concrete cube, concrete blocks, cement specimen, and bricks etc, also used for compression performance test of rubber pad and top forge test of metal. With new design idea and advanced technology, this series have more advantages in appearance, operation & applications. It is the ideal test equipment for quality control at industry & mineral enterprises, education in high schools, and technology researches at scientific institutes. Standards It is conformed to EN 12390-3, 12390-4; BS 1881,ASTM E4, ASTM C139, ISO7500-1, EN10002-2, BS 1610, DIN51220, C1231 –AASHTO T22 -NF P18-411 -UNE 83304, 7242 etc. Main Specifications Max. Load - 5000kN Control method - Computer auto control loading process Test class - 1 class Load measuring range - 4-100% of F.S Load accuracy - ±1.0% Displacement measuring range - 0～80mm Displacement resolution - 0.001 Upper and lower Compression Platen (mm) - 600mm×600mm Piston stroke(mm) - 80 Distance between upper and lower plate - 1000mm Power supply - AC380V/220V
