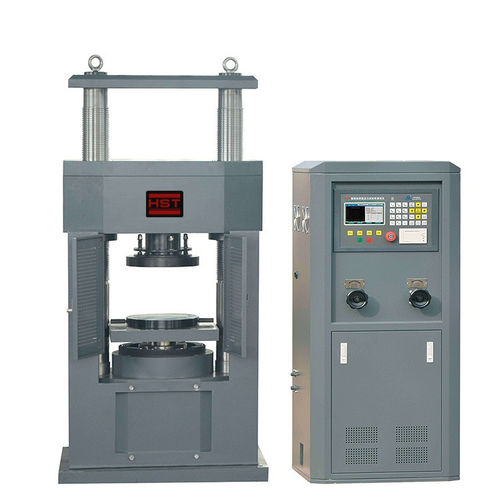

Compression test machine YES-3000E

PC-controllableconcretefor cement and mortar

Application：The Compression Testing Machine with PC&Servo Control is designed for testing the compressive strength of building materials such as brick, cement mortar and concrete; 1. Application The compression testing machine with PC&Servo Control is designed for testing the compressive strength of building materials such as brick, cement mortar and concrete; it is electro-hydraulically powered and the pressure applied on the specimen can be displayed directly; The maximum force value can be maintained and the data measured can be saved when the power is off; The test data can be processed automatically and the test report can be printed requirements. 2.Main Specifications Max. load 3000kN/300Ton Machine Class 1 class Range of test force 4% ~100%FS Host Structure Double electric screw ball adjust test space Indicating value accuracy ±1% Piston stroke 200mm Distance between upper and lower platen 550mm Upper and lower platen size Φ300mm (Can be customized) Display LCD Power supply AC380V/50Hz/3 phase(can be customized) Host size Control cabinet size 960×740×2080 mm 600*540*1370mm Weight 3100 kg Overall power Power of oil pump motor 3kw 2.2kw 3. Main configuration: Main unit and oil source control cabinet 1 set High precision compression sensor 1 pc English version operate instrument 1 suit Micro printers 1 set Specialized compression attachment 1 suit Accompany tools 1 suit Accompany documents 1suit Flexure fixture Optional
