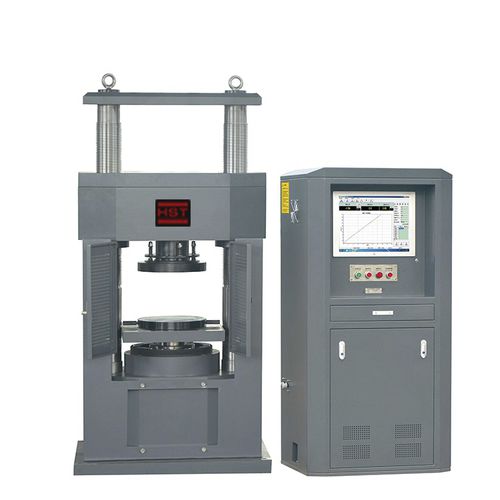

Compression testing machine YES-2000EG

computer-controlledautomaticconcrete

The compression testing machine with PC&Servo Control is designed for testing the compressive strength of building materials such as brick, cement mortar and concrete; it is electro-hydraulically powered and the pressure applied on the specimen can be displayed directly; The maximum force value can be maintained and the data measured can be saved when the power is off; The test data can be processed automatically and the test report can be printed Main Specifications Max. load - 2000kN/200Ton - 1000kN/100Ton Machine Class - 1 class Range of test force - 4% ~100%FS Host Structure - Double electric screw ball adjust test space Indicating value accuracy - ±1% Piston stroke - 150mm Distance between upper and lower platen - 600mm Upper and lower platen size - 300*300mm (Can be customized) Display - LCD Power supply - AC380V/50Hz/3 phase(can be customized) Size - 900×400×1150 mm Weight - 750kg
