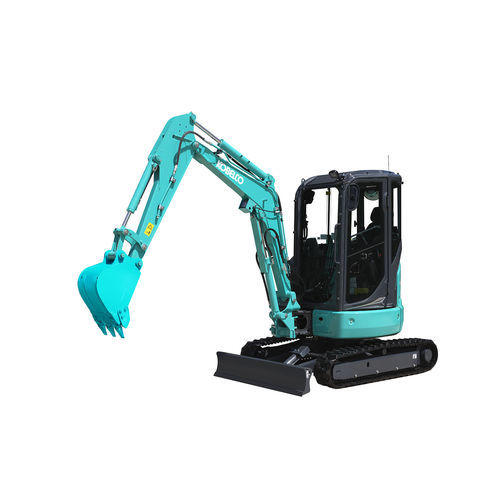

Mini-excavator SK26SR-7

crawlerdieselconstruction

Model: - YANMAR 3TNV88 Type: - Four-cycle, water-cooled, direct injection diesel engine, complies with EU Stage V exhaust emission regulation Fuel tank: - 42.0 L Displacement: - 1.642 L Rated power output: - 18.9kW / 2,400 min-1 (ISO14396) Hydraulic system Max. discharge flow: - 2 x 28.8 L/min, 1 x 16.1 L/min, 1 x 10.8 L/min Relief Valve Setting: - 23.0 MPa (Boom, arm and bucket) Hydraulic Oil tank: - 16.0 L tank oil level, 31.0 L hydraulic system Digging force Bucket digging force (Standard): - 20.8kN Arm crowding force (Standard): - 14.2kN Arm crowding force (Long): - 12.4kN Standard arm: - 1.15 m Long arm: - 1.40 m Travel Force Travel speed: - 4.4/2.6 km/h (rubber shoe), 4.3/2.5 km/h (steel shoe) Drawbar pulling force: - 27.9 kN (Cab) / 28.0 kN (Canopy) Gradeability: - 58 % {30 °}
