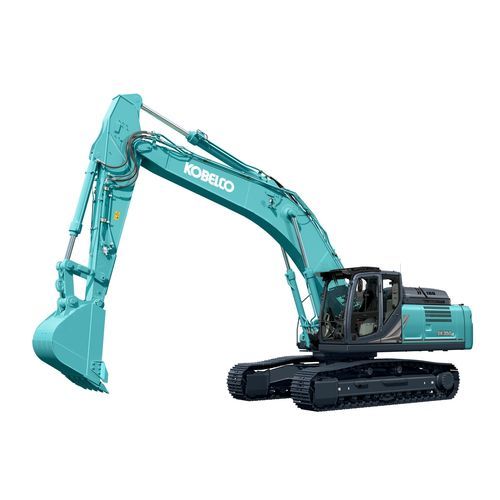

Medium excavator SK350(N)LC-11E

crawlerdieselconstruction

Engine Model: - ISUZU 6HK1 Type: - Four-cycle, water-cooled, direct injection diesel engine, turbo charged, EU Stage V exhaust emission regulation Fuel tank: - 503 L Displacement: - 7.790 L Rated power output: - 210 kW / 1,900 min-1 (ISO 14396) Digging force Bucket digging force (Short): - 221 / 243* Bucket digging force (Standard): - 222 / 244* Bucket digging force (Long): - 220 / 242* Arm crowding force (Short): - 205 / 225* Arm crowding force (Standard): - 163 / 180* Arm crowding force (Long): - 140 / 154* Short arm: - 2.60 m Standard arm: - 3.30 m Long arm: - 4.15 m Power boost engaged: - UNIT = kN * Power Boost engaged Hydraulic system Type: - Two variable displacement axial piston pumps + extra gear pump + pilot gear pump Max. discharge flow: - 2 x 294 L/min, 1 x 44.3 L/min, 1 x 19 L/min Relief Valve Setting: - 34.3 Mpa (Boom, arm and bucket) Hydraulic Oil tank: - 245 L tank oil level, 410 L hydraulic system Power Boost: - 37.8 Mpa Travel Force Travel motors: - 2 x axial-piston, two-step motors Travel shoes: - 48 each side Travel speed: - 5.6 / 3.3 km/h Drawbar pulling force: - 321 kN (SAE) Gradeability: - 70 % {35°}
