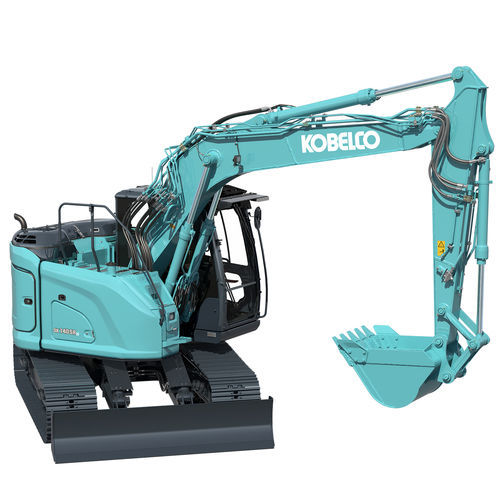

Medium excavator SK140SRLC-7

crawlerdieselconstruction

Engine Model: - ISUZU MOTORS LIMITED 4JJ1XDDV A01 Type: - Four-cycle, liquid-cooled, direct injection diesel, turbo charged complies with EU Stage V exhaust emission regulation Fuel tank: - 186 L Displacement: - 2.999 L Rated power output: - 86 kW (117 hp)/2,200 min-1 (ISO 14396) Hydraulic system Type: - Two variable displacement axial piston pumps + extra gear pump + pilot gear pump Max. discharge flow: - 2 × 142 L/min 1 × 66 L/min 1 × 22 L/min Relief Valve Setting: - 34.3 MPa (Boom, arm and bucket) Hydraulic Oil tank: - 89.9 L tank oil level, 182 L hydraulic system Digging force Bucket digging force (Standard): - 105.4 kN Arm crowding force (Standard): - 64 kN Arm crowding force (Long): - 58 kN Standard arm: - 2.38 m Long arm: - 2.84 m Travel Force Travel motors: - 2 × axial-piston, two-step motors Travel shoes: - 46 each side Travel speed: - 3.4 /5.6 km/h Swing speed: - 11.0 min-1 Drawbar pulling force: - 140 kN (SAE) Gradeability: - 70% {35°}
