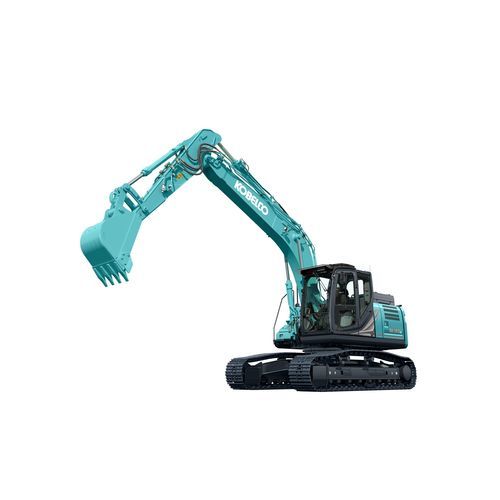

Medium excavator SK180(N)LC-11E

crawlerdieselconstruction

Engine Model: - YANMAR 4TN107FHT Type: - Four-cycle, water-cooled, direct injection diesel engine, turbo charged, EU Stage V exhaust emission regulation Fuel tank: - 280 L Displacement: - 4,567 L Rated power output: - 100 kW / 2,000 min-1 (ISO 14396) Hydraulic system Model: - Two variable displacement axial piston pumps + extra gear pump + pilot gear pump Max. discharge flow: - 2 × 160 L/min, 1 × 41.2 L/min, 1 × 20 L/min Relief Valve Setting: - 34.3 MPa (Boom, arm and bucket) Hydraulic Oil tank: - 122 L tank oil level, 200 L hydraulic system Power Boost: - 37.8 MPa Digging force Bucket digging force (Standard): - 114 /126* Bucket digging force (Long): - 114 /126* Arm crowding force (Standard): - 82.3 / 90.6* Arm crowding force (Long): - 71.7 / 78.8* Standard arm: - 2.60 m Long arm: - 3.10 m Power boost engaged: - UNIT = kN * Power Boost engaged Travel Force Travel motors: - 2 x axial-piston, two-step motors Travel shoes: - SK180LC : 49 each SK180N : 45 each Travel speed: - 4.5 / 2.7 km/h Swing speed: - 12.6 min-1 Drawbar pulling force: - 230 kN (SAE) Gradeability: - 70% { 35° }
