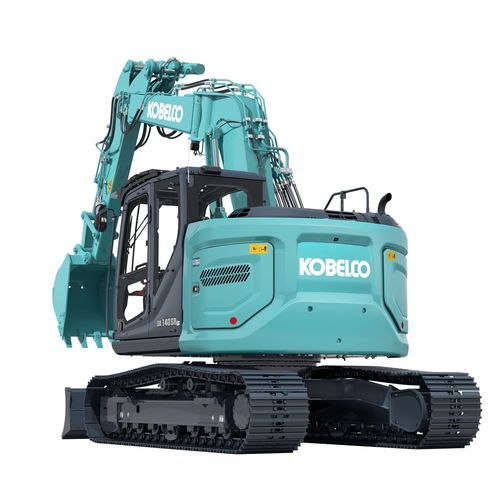

Medium excavator SK140SRLC-7 Side Drain

crawlerdieselconstruction

Engine Model: - ISUZU MOTORS LIMITED 4JJ1XDDV A01 Type: - Four-cycle, liquid-cooled, direct injection diesel, turbo charged complies with EU Stage V exhaust emission regulation Fuel tank: - 186 L Displacement: - 2.999 L Rated power output: - 78.5 kW /2,000 min-1 (ISO 14396) Hydraulic system Type: - Two variable displacement piston pumps + one gear pump Max. discharge flow: - 2 x 130 L/min, 1 x 20 L/min Relief Valve Setting: - 34.3 MPa (Boom, arm and bucket) Hydraulic Oil tank: - 89.9 L tank oil level, 186 L hydraulic system Digging force Bucket digging force (Standard): - 92.9 kN Arm crowding force (Standard): - 61.9 kN Arm crowding force (Long): - 57.3 kN Standard arm: - 2.20 m Long arm: - 2.50 m Travel Force Travel motors: - Variable displacement piston, two-speed motors Travel shoes: - 46 each side Travel speed: - 3.4 /5.6 km/h Swing speed: - 11.0 min-1 Drawbar pulling force: - 140 kN (SAE) Gradeability: - 70% {35°}
