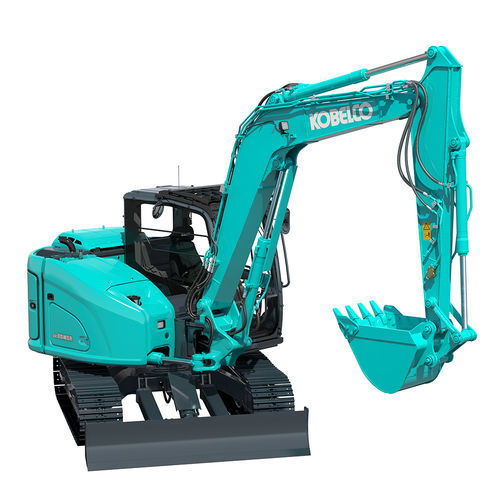

Medium excavator SK85MSR-7

crawlerdieselconstruction

Engine Model: - YANMAR 4TNV98CT Type: - Four-stroke, liquid-cooled, direct injection diesel, turbo charged complies with EU Stage V exhaust emission regulation Fuel tank: - 120 L Displacement: - 3.318 L Rated power output: - 53.7 kW/2,100 min-1 (ISO 14396) Type: - Two variable displacement axial piston pumps + pilot gear pump Max. discharge flow: - 2 x 72.5 L /min, 1 x 19 L /min Relief Valve Setting: - 29.4 Mpa (Boom, arm and bucket) Hydraulic fuel tank: - 44 L tank oil level, 84 L hydraulic system Digging force Bucket digging force (Standard): - 60.3 kN Arm crowding force (Standard): - 37.1 kN Arm crowding force (Long): - 33.7 kN Short arm: - 1.87m Long arm: - 2.13m Travel Force Travel motors: - 2 × axial-piston, two-step motors Travel shoes: - 39 each side Travel speed: - 5.0/2.7 km/h Swing speed: - 11,5 min-1 Drawbar pulling force: - 77 kN (SAE) Gradeability: - 58% {30°}
