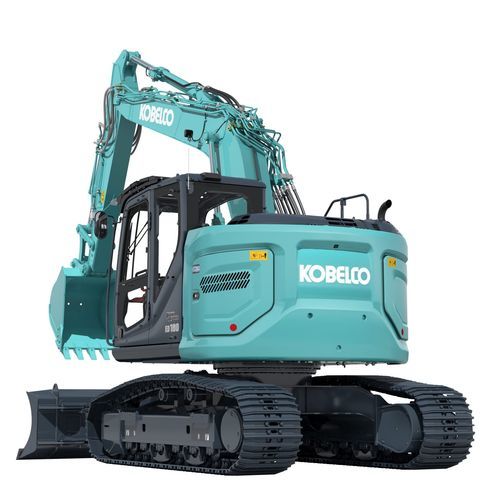

Medium excavator ED160-7 Blade Runner

crawlerdieselconstruction

Engine Model: - ISUZU MOTORS LIMITED 4JJ1XDDV A01 Type: - Four-cycle, liquid-cooled, direct injection diesel, turbo charged complies with EU Stage V exhaust emission regulation Fuel tank: - 190 L Displacement: - 2.999 L Rated power output: - 86 kW (117 hp) /2,200 min-1 (ISO14396) Hydraulic system Type: - Two variable displacement piston pumps + extra gear pump Max. discharge flow: - 2 x 142 L/min 1 x 66 L/min (extra) Relief Valve Setting: - 34.3 MPa (Boom, arm and bucket) Hydraulic fuel tank: - 89.9 L tank oil level, 190 L hydraulic system Digging force Bucket digging force (Standard): - 105.4 kN Arm crowding force (Standard): - 64 kN Arm crowding force (Long): - 58 kN Standard arm: - 2.38 m Long arm: - 2.84 m Travel Force Travel motors: - Variable displacement piston, two-speed motors Travel shoes: - 40 each side Travel speed: - 2.4/4.8 km/h Drawbar pulling force: - 195 kN (SAE) Gradeability: - 70% {35°}
