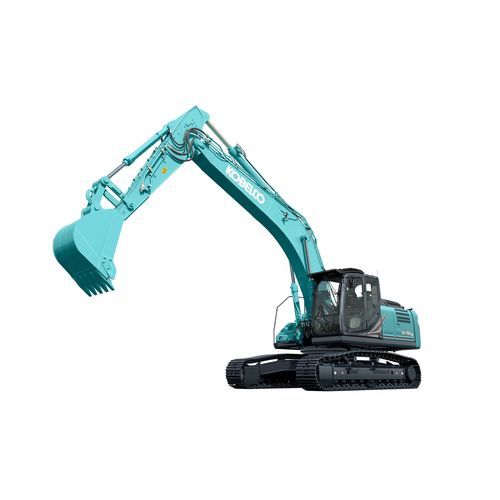

Medium excavator SK260(N)LC-11E

crawlerdieselconstruction

Engine Model: - YANMAR 4TN107FTT Type: - Four-cycle, water-cooled, direct injection diesel engine, turbo charged, EU Stage V exhaust emission regulation Fuel tank: - 403 L Displacement: - 4.567 L Rated power output: - 155 kW/2,200 min-1 (ISO 14396) Hydraulic system Model: - Two variable displacement axial piston pumps + extra gear pump + pilot gear pump Max. discharge flow: - 2 x 245 L/min, 1 x 42.6 L/min, 1 x 21 L/min Relief Valve Setting: - 34.3 MPa (Boom, arm and bucket) Hydraulic fuel tank: - 165 L tank oil level, 273 L hydraulic system Power Boost: - 37.8 MPa Digging force Bucket digging force (Short): - 170 / 187* Bucket digging force (Standard): - 170 / 187* Bucket digging force (Long): - 170 / 187* Arm crowding force (Short): - 142 / 156* Arm crowding force (Standard): - 122 / 134* Arm crowding force (Long): - 104 / 114* Short arm: - 2.50 m Standard arm: - 2.98 m Long arm: - 3.66 m Power boost engaged: - UNIT = kN * Power Boost engaged Travel Force Travel motors: - 2 x axial-piston, two-step motors Travel shoes: - 51 each side Travel speed: - 5.8/3.6 km/h Swing speed: - 11.4 min-1 Drawbar pulling force: - 243 kN (SAE) Gradeability: - 70 % {35°}
