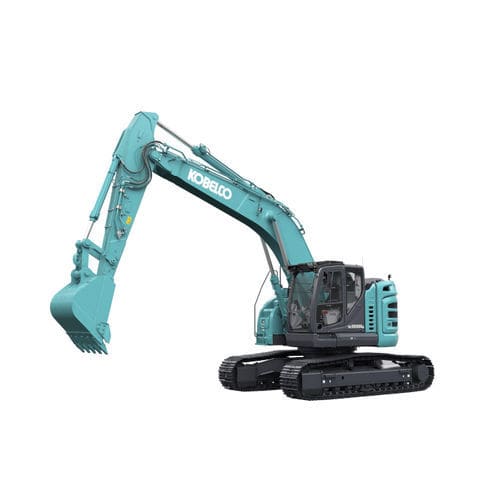

Medium excavator SK380SRLC-7

crawlerdieselconstruction

Engine Model: - ISUZU 6HK1 Type: - Direct Injection, water-cooled, 4-cycle diesel engine with turbocharger, intercooler complies with EU stage V exhaust emission regulation Fuel tank: - 350 L Displacement: - 7.790 L Rated power output: - 210 kW / 1,900 min-1 (ISO14396) Digging force Bucket digging force (Short): - 189 / 208* Bucket digging force (Standard): - 189 / 208* Arm crowding force (Short): - 158 / 174* Arm crowding force (Standard): - 126 / 139* Short arm: - 2.40 m Standard arm: - 3.10 m Power boost engaged: - UNIT = kN * Power Boost engaged Hydraulic system Type: - Axial piston pumps + extra gear pump + pilot gear pump Max. discharge flow: - 2 × 245 L/min, 1 × 44.3 L/min ,1 × 19 L/min Relief Valve Setting: - 34.3 MPa (Boom, arm and bucket) Hydraulic fuel tank: - 245 L tank oil level, 440 L hydraulic system Power Boost: - 37.8 MPa Travel Force Travel motors: - 2 × axial-piston, two-step motors Travel shoes: - 48 each side Travel speed: - 4.6/2.8 km/h Drawbar pulling force: - 314 kN (SAE) Gradeability: - 70 % {35°}
