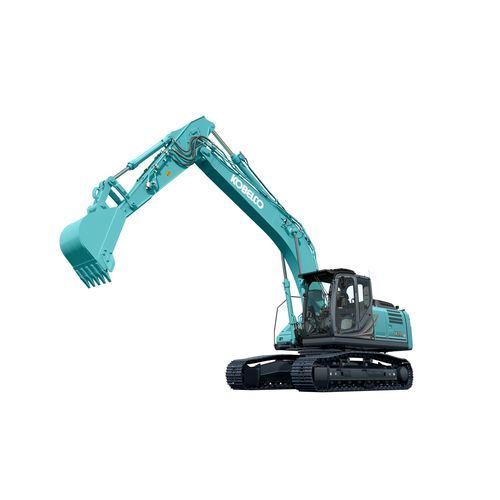

Medium excavator SK210(SN)LC-11E

crawlerdiesel

Engine Model: - YANMAR 4TN107FTT Type: - Four-cycle, water-cooled, direct injection diesel engine, turbo charged, EU Stage V exhaust emission regulation Fuel tank: - 321 L Displacement: - 4.567 L Rated power output: - 127 kW/2,000 min-1 (ISO14396) Hydraulic system Type: - Two variable displacement axial piston pumps + extra gear pump + pilot gear pump Max. discharge flow: - 2 x 220 L/min, 1 x 40.6 L /min , 1 × 20 L/min Relief Valve Setting: - 34.3 MPa (Boom, arm and bucket) Hydraulic Oil tank: - 140 L tank oil level, 244 L hydraulic system Power Boost: - 37.8 MPa Digging force Bucket digging force (Standard): - 143 / 157* Arm crowding force (Short): - 121 / 133* Arm crowding force (Standard): - 102 / 112* Arm crowding force (Long): - 91.8 / 101* Short arm: - 2.40 m Standard arm: - 2.94 m Long arm: - 3.50 m Power boost engaged: - UNIT = kN * Power Boost engaged Travel Force Travel motors: - 2x axial-piston motor, two-step motors Travel shoes: - 49 each side Travel speed: - 6.0/3.6 km/h Swing speed: - 12.7 min-1 Drawbar pulling force: - 228 kN (SAE) Gradeability: - 70 % {35°}
