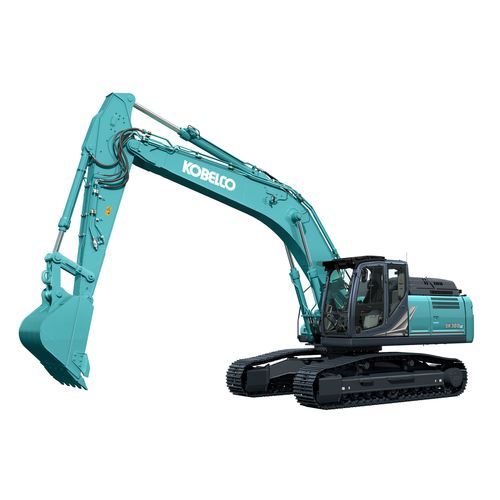

Medium excavator SK300(N)LC-11E

crawlerdieselconstruction

Engine Model: - ISUZU 6HK1 Type: - Four-cycle, water-cooled, direct injection diesel engine, turbo charged, EU Stage V exhaust emission regulation Fuel tank: - 503 L Displacement: - 7.790 L Rated power output: - 210 kW / 1,900 min-1 (ISO 14396) Digging force Bucket digging force (Short): - 188 / 208* Bucket digging force (Standard): - 188 / 208* Bucket digging force (Long): - 188 / 208* Arm crowding force (Short): - 158 / 174* Arm crowding force (Standard): - 126 / 139* Arm crowding force (Long): - 105 / 115* Short arm: - 2.40 m Standard arm: - 3.10 m Long arm: - 4.00 m Power boost engaged: - UNIT = kN * Power Boost engaged Hydraulic system Type: - Two variable displacement axial piston pumps + extra gear pump + pilot gear pump Max. discharge flow: - 2 × 245 L/min , 1 × 44.3 L/min , 1 × 19 L/min Relief Valve Setting: - 34.3 Mpa (Boom, arm and bucket) Hydraulic fuel tank: - 245 L tank oil level, 410 L hydraulic system Power Boost: - 37.8 Mpa Travel Force Travel motors: - 2 x axial-piston, two-step motors Travel shoes: - 50 each side Travel speed: - 5.2 / 3.1 km/h Drawbar pulling force: - 279 kN (SAE) Gradeability: - 70 % {35°}
