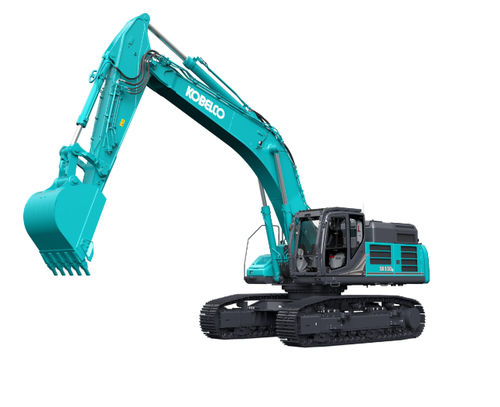

Medium excavator SK530LC-11Ecrawlerdieselconstruction
Add to favorites
Compare this product
Characteristics
- Size
- medium
- Locomotion
- crawler
- Engine type
- diesel
- Applications
- construction
- Other characteristics
- compact, multi-function
- Bucket capacity
Max.: 3.4 m³
(120.07 ft³)Min.: 1.4 m³
(49.441 ft³)- Operating weight
Max.: 54.1 kg
(119.3 lb)Min.: 52.7 kg
(116.2 lb)- Engine power
280 kW
(380.69 hp)- Travel speed
3.2 km/h, 5.4 km/h
(2 mph, 3.4 mph)- Tank capacity
638 l
(168.542 gal)
Description
Product specifications SK530LC-11E Mass Excavation
Operating weight:
52,700 kg - 54,100 kg
Engine rated power:
280 kW/1,800 min-1 (ISO 14396)
Bucket capacity:
1.4-3.4 m3
Engine
Model: - CUMMINS X12
Type: - Four-cycle, water-cooled, direct injection diesel engine, turbo charged, EU Stage V exhaust emission regulation
Fuel tank: - 638 L
Displacement: - 11.8 L
Rated power output: - 280 kW/1,800 min-1 (ISO 14396)
Digging force
Bucket digging force (Standard): - 288/312*
Arm crowding force (Standard): - 247/270*
Standard arm: - 2.40 m
Power boost engaged: - UNIT = kN / * Power Boost engaged
