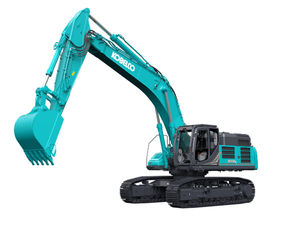

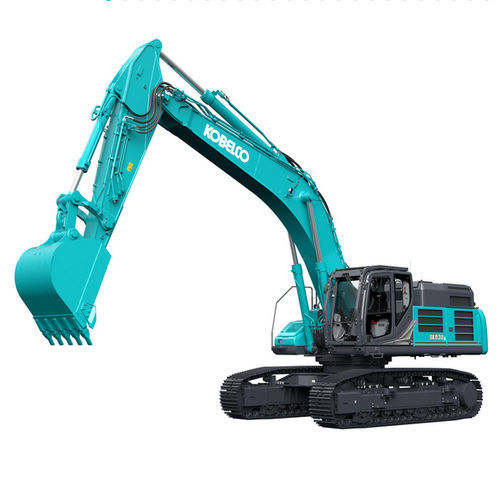

Medium excavator SK530LC-11E Mass Excavationcrawlerdiesel
Add to favorites
Compare this product
Characteristics
- Size
- medium
- Locomotion
- crawler
- Engine type
- diesel
- Bucket capacity
Max.: 3.4 m³
(120.07 ft³)Min.: 1.4 m³
(49.441 ft³)- Lifting capacity
Max.: 20,000 kg
(44,092.5 lb)Min.: 7,000 kg
(15,432.4 lb)- Operating weight
Max.: 54.1 kg
(119.3 lb)Min.: 52.7 kg
(116.2 lb)- Engine power
280 kW
(380.69 hp)- Tank capacity
638 l
(168.542 gal)
Description
Product specifications
Engine
Type:
Four-cycle, water-cooled, direct injection diesel engine, turbo charged, EU Stage V exhaust emission regulation
Displacement:
11.8 L
Digging force
Bucket digging force (Standard):
288/312*
Arm crowding force (Standard):
247/270*
Standard arm:
2.40 m
Power boost engaged:
UNIT = kN / * Power Boost engaged
Hydraulic system
Type:
Two variable displacement axial piston pumps + rotation gear pump + pilot gear pump
Max. discharge flow:
2 x 370 L/min, 1 x 58.5 L/min, 1 x 27 L /min
Relief Valve Setting:
31.4 Mpa (Boom, arm and bucket)
Hydraulic Oil tank:
371 L tank oil level, 631 L hydraulic system
Power Boost:
34.3 Mpa
Travel Force
Travel motors:
2 × axial-piston, two-step motors
Travel shoes:
50 each side
Travel speed:
5.4 / 3.2 km/h
Drawbar pulling force:
409 kN (SAE)
Gradeability:
70 % {35°}
