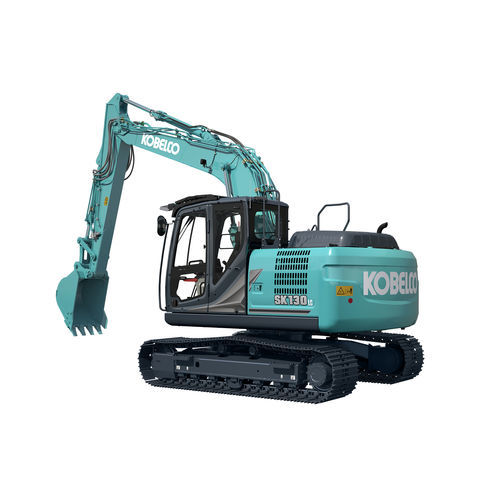

Medium excavator SK130LC-11

crawlerdieselconstruction

Engine Model: - ISUZU MOTORS LIMITED 4JJ1XDDV A01 Type: - Four-stroke, liquid-cooled, direct injection diesel, turbo charged complies with EU Stage V exhaust emission regulation Fuel tank: - 280 L Displacement: - 2.999 L Rated power output: - 78.5 kW (107 hp)/2,000 min-1 (ISO 14396) Hydraulic system Type: - Two variable displacement axial piston pumps + extra gear pump + pilot gear pump Max. discharge flow: - 2 × 130 L /min 1 × 60 L/min 1 × 20 L/min Relief Valve Setting: - 34.3 MPa (Boom, arm and bucket) Hydraulic Oil tank: - 96.7 L tank oil level, 180 L hydraulic system Digging force Bucket digging force (Standard): - 105.4 kN Arm crowding force (Standard): - 64 kN Arm crowding force (Long): - 58 kN Standard arm: - 2.38 m Long arm: - 2.84 m Travel Force Travel motors: - 2 × axial-piston, two-step motors Travel shoes: - 46 each side Travel speed: - 3.4 /5.6 km/h Swing speed: - 11.0 min-1 Drawbar pulling force: - 141 kN (SAE) Gradeability: - 70% {35°}
