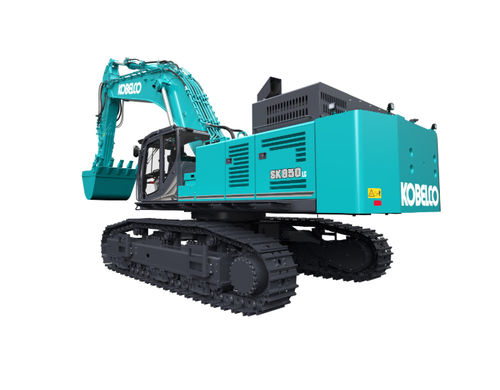

Medium excavator SK850LC-11

crawlerdieselconstruction

Product specifications SK850LC-11 Operating weight: 81,300 kg - 87,200 kg Engine rated power: 382 kW / 1,800 min-1 (ISO 14396) Bucket capacity: 2.3 - 5.4 m3 Engine Model: - Isuzu 6WG1 Type: - Four-cycle, water-cooled, direct injection diesel engine, turbo charged, EU Stage V exhaust emission regulation Displacement: - 15.681L Rated power output: - 382 kW / 1,800 min-1 (ISO 14396) Digging force Bucket digging force (Short): - 432 kN (2.90m) Bucket digging force (Standard): - 403 kN (3.60 m, 4.40 m) Bucket digging force (Long): - 403 kN (5.40 m) Arm crowding force (Short): - 351 kN (2.90 m) Arm crowding force (Standard): - 311 kN (3.60 m) / 272 kN (4.40 m) Arm crowding force (Long): - 234 kN (5.40 m) Hydraulic system Type: - Two variable displacement axial piston pumps + rotation gear pump + pilot gear pump Max. discharge flow: - 2 × 504 L/min, 1 × 49.3 L/min, 1 × 30 L/min Relief Valve Setting: - 33.0 MPa (Boom, arm and bucket) Travel Force Travel motors: - 2 x axial-piston, two-step motors Travel shoes: - 51 each side Travel speed: - 4.2 / 2.7 km/h Swing speed: - 7.3 min-1 Drawbar pulling force: - 678 kN (SAE) Gradeability: - 70 % {35°} - OUR DEALERS Use our intelligent dealer locator to find your nearest Kobelco Authorised Dealer.
