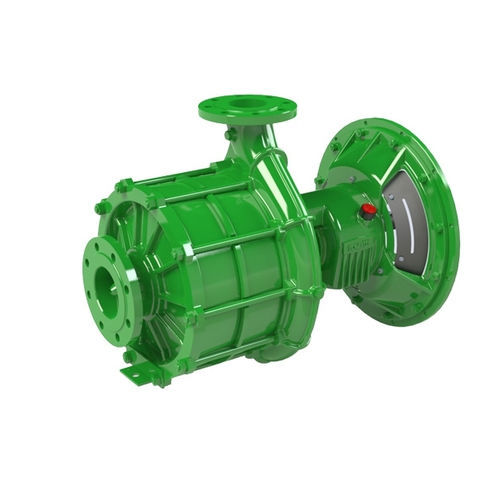

Centrifugal pump FK series

waterfor fresh waterwith combustion engine

Overview
Multistage SAE-flanged centrifugal pumps for direct coupling to thermic (combustion) engines via SAE flanges. Axial inlet; upward delivery flange that can rotate laterally 90° to either side.

Applications

• Irrigation systems
• Spraying systems
• Livestock systems
• Liquid transfer
• Filling tanks and reservoirs
• Civil protection / flooding

Performance table
Series - CAPACITY UP TO - HEAD UP TO - POWER UP TO
FK65 - 54 m3/h - 160 m - 27 kW
FK80 - 96 m3/h - 160 m - 41 kW
FK100 - 156 m3/h - 175 m - 78 kW
FK125 - 240 m3/h - 170 m - 120 kW
FK150 - 300 m3/h - 165 m - 115 kW

Characteristics / Technical specifications

• Type: Multistage centrifugal pump
• Mounting: SAE-flanged for direct coupling to thermic (combustion) engines
• Inlet / outlet: Axial inlet and outlet
• Delivery flange: Upward delivery flange capable of lateral rotation 90° on both sides
• Available series: FK65, FK80, FK100, FK125, FK150
• Capacity range by series: FK65 up to 54 m3/h; FK80 up to 96 m3/h; FK100 up to 156 m3/h; FK125 up to 240 m3/h; FK150 up to 300 m3/h
• Maximum head by series: up to 175 m (depending on series)
• Power rating by series: up to 120 kW (depending on series)
