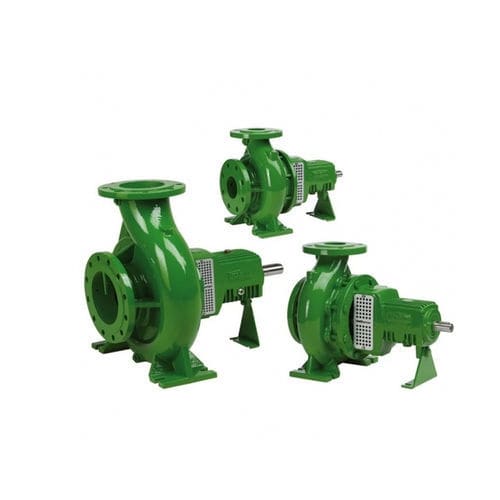

Centrifugal with volute pump SNE series

for cooling waterwaterfor liquids

Product overview
Horizontal bare-shaft single-stage centrifugal pumps with axial inlet and volute outlet. Dimensions and hydraulic performance comply with EN733 / DIN24255 standards. Designed for installation with separate driver (motor) and suitable for a wide range of clean water and liquid transfer applications.

Applications

• Water supply
• Firefighting systems
• Cooling water systems
• Irrigation systems
• Liquid transfer

Available series - main performance table

• SNE32: Inlet x outlet 50 x 32; Capacity up to 51 m3/h; Head up to 98 m; Max speed 3500 rpm
• SNE40: Inlet x outlet 65 x 40; Capacity up to 84 m3/h; Head up to 146 m; Max speed 3500 rpm
• SNE50: Inlet x outlet 65 x 50; Capacity up to 120 m3/h; Head up to 136 m; Max speed 3500 rpm
• SNE65: Inlet x outlet 80 x 65; Capacity up to 210 m3/h; Head up to 150 m; Max speed 3500 rpm
• SNE80: Inlet x outlet 100 x 80; Capacity up to 345 m3/h; Head up to 155 m; Max speed 3500 rpm
• SNE100: Inlet x outlet 125 x 100; Capacity up to 560 m3/h; Head up to 145 m; Max speed 2900 rpm
• SNE125: Inlet x outlet 150 x 125; Capacity up to 600 m3/h; Head up to 87 m; Max speed 1750 rpm
• SNE150: Inlet x outlet 200 x 150; Capacity up to 780 m3/h; Head up to 110 m; Max speed 1750 rpm
• SNE200: Inlet x outlet 250 x 200; Capacity up to 960 m3/h; Head up to 80 m; Max speed 1750 rpm
• SNE250: Inlet x outlet 300 x 250; Capacity up to 1300 m3/h; Head up to 80 m; Max speed 1750 rpm

Technical features / specifications

• Type: Horizontal bare-shaft, single-stage centrifugal pump
• Inlet: axial inlet
• Outlet: volute (scroll) outlet
• Standards: EN733 - DIN24255 (dimensions and performance)
• Series: SNE (models: SNE32, SNE40, SNE50, SNE65, SNE80, SNE100, SNE125, SNE150, SNE200, SNE250)
• Performance details per model as listed above (flow in m3/h, head in m, maximum speed in rpm)
